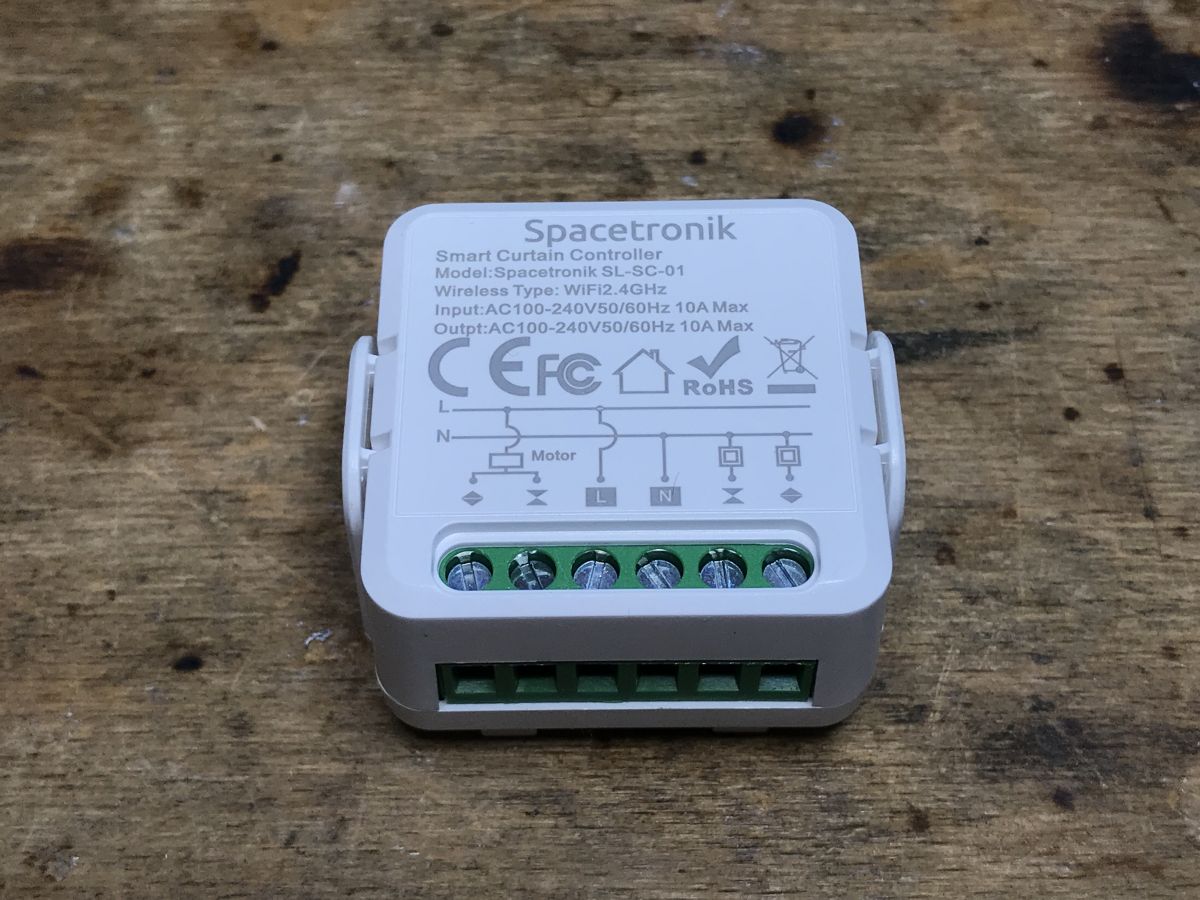

Spacetronik shutter controller module SL-SC-01

Information

Vendor: Tuya

Chip: BK7231N

Board: CB2S

Detailed: 1

Keywords: BL2028N, curtains

Device Template

{
  "vendor": "Tuya",
  "bDetailed": "1",
  "name": "Spacetronik shutter controller module SL-SC-01",
  "model": "SL-SC-01",
  "chip": "BK7231N",
  "board": "CB2S",
  "keywords": [
    "BL2028N",
    "curtains"
  ],
  "pins": {
    "6": "Rel;1",
    "7": "Rel;3",
    "10": "Btn;1",
    "11": "Btn;3",
    "24": "WifiLED_n;0",
    "26": "Btn;2"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/8239650400_1679669488.jpg",
  "wiki": "https://www.elektroda.pl/rtvforum/topic3974291.html"
}

Pins

- P6 is Rel on channel 1
- P7 is Rel on channel 3
- P10 is Btn on channel 1
- P11 is Btn on channel 3
- P24 is WifiLED_n on channel 0
- P26 is Btn on channel 2

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
