1 Gang Switch

Information

Vendor: DS-101

Chip: BK7231T

Board: WB3S

Detailed: 0

Keywords:

Device Template

{
  "vendor": "DS-101",
  "bDetailed": "0",
  "name": "1 Gang Switch",
  "chip": "BK7231T",
  "board": "WB3S",
  "pins": {
    "1": "WifiLED;1",
    "6": "Rel;1",
    "10": "Btn;1",
    "26": "LED;1"
  },

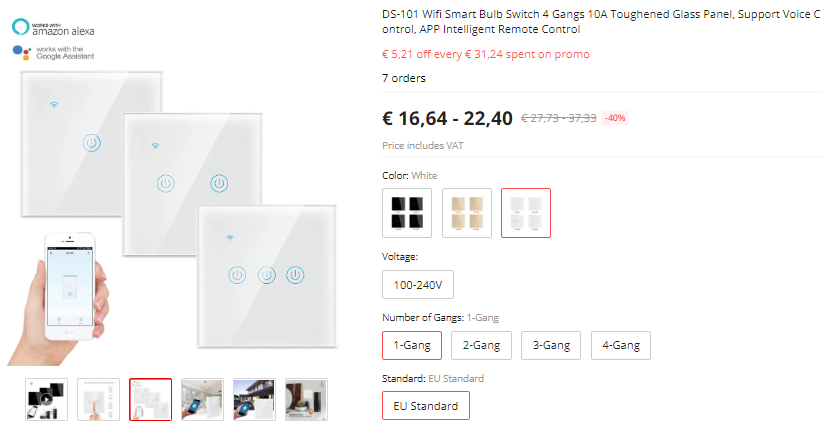

  "image": "https://obrazki.elektroda.pl/4504881600_1667458212.png",
  "wiki": ""
}

Pins

- P1 is WifiLED on channel 1
- P6 is Rel on channel 1
- P10 is Btn on channel 1
- P26 is LED on channel 1

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
