BN-LINK Smart Power Strip Compatible with Alexa Google Home, Smart Plug WiFi Outlets Surge Protector with 4 USB 4 Charging Port Multi Plug Extender,15A

Information

Vendor: BN-LINK

Chip: BK7231T

Board: WB2S

Detailed: 1

Keywords: power strip, 4 gang

Device Template

{
  "vendor": "BN-LINK",
  "bDetailed": "1",
  "name": "BN-LINK Smart Power Strip Compatible with Alexa Google Home, Smart Plug WiFi Outlets Surge Protector with 4 USB 4 Charging Port Multi Plug Extender,15A",
  "model": "U158WT",
  "chip": "BK7231T",
  "board": "WB2S",
  "pins": {
    "6": "Rel;1",
    "8": "Rel;4",
    "10": "Btn;1",
    "11": "WifiLED_n",
    "24": "Rel;2",
    "26": "Rel;3"
  },
  "keywords": [
    "power strip",
    "4 gang"
  ],

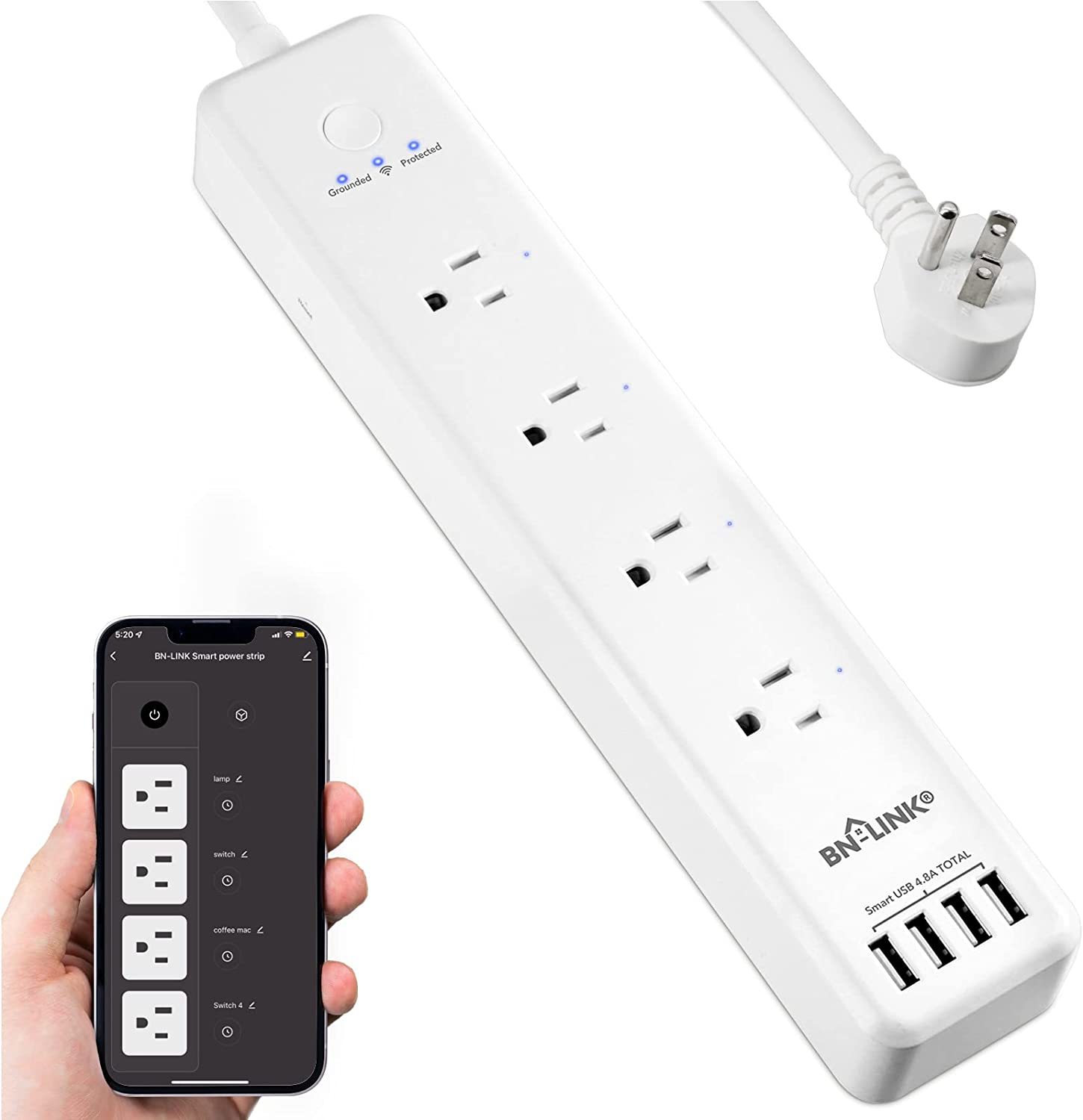

  "image": "https://obrazki.elektroda.pl/6899255400_1674114230.png"
}

Pins

- P6 is Rel on channel 1
- P8 is Rel on channel 4
- P10 is Btn on channel 1
- P11 is WifiLED_n on channel undefined
- P24 is Rel on channel 2
- P26 is Rel on channel 3

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
