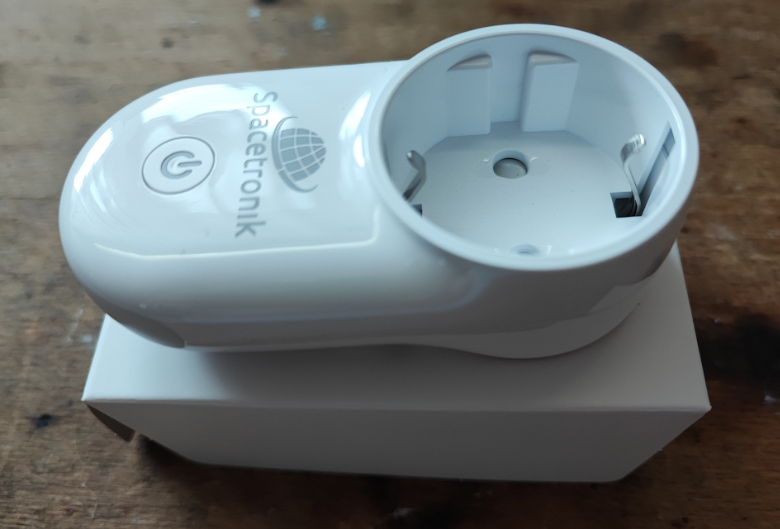

Smart Power Metering Socket With Backlight

Information

Vendor: Tuya

Chip: BK7231N

Board: CB2S

Detailed: 0

Keywords: Allegro

Device Template

{
  "vendor": "Tuya",
  "bDetailed": "0",
  "name": "Smart Power Metering Socket With Backlight",
  "model": "SL-PS11",
  "chip": "BK7231N",
  "board": "CB2S",
  "keywords": [
    "Allegro"
  ],
  "pins": {
    "6": "PWM;4",
    "7": "BL0937CF;0",
    "8": "BL0937CF1;0",
    "10": "WifiLED_n;0",
    "11": "Btn;1",
    "23": "Rel;1",
    "24": "BL0937SEL;0"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/7014154300_1721153160.png",
  "wiki": "https://www.elektroda.pl/rtvforum/topic4069082.html"
}

Pins

- P6 is PWM on channel 4
- P7 is BL0937CF on channel 0
- P8 is BL0937CF1 on channel 0
- P10 is WifiLED_n on channel 0
- P11 is Btn on channel 1
- P23 is Rel on channel 1
- P24 is BL0937SEL on channel 0

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
