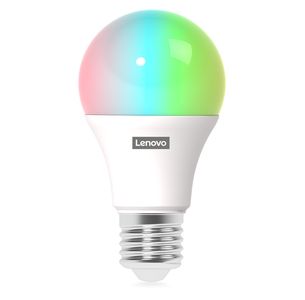

Lenovo RGBCT E26 A19 Bulb 806lm

Information

Vendor: Lenovo

Chip: BK7231N

Board: CB8P

Detailed: 0

Keywords: 2ANDL-CB8P, screw, lamp, 2700-6500K, 110v-120v, ZG38C03715

Device Template

{
  "vendor": "Lenovo",
  "bDetailed": "0",
  "name": "Lenovo RGBCT E26 A19 Bulb 806lm",
  "model": "SE-242DC",
  "chip": "BK7231N",
  "board": "CB8P",
  "flags": "1280",
  "keywords": [
    "2ANDL-CB8P",
    "screw",
    "lamp",
    "2700-6500K",
    "110v-120v",
    "ZG38C03715"
  ],
  "pins": {
    "7": "PWM;5",
    "8": "PWM_n;4",
    "9": "PWM;1",
    "24": "PWM;3",
    "26": "PWM;2"
  },
  "command": "",
  "image": "https://tuya-cloudcutter.github.io/images/thumbs/lenovo-se-242dc-rgbct-bulb-v1.2.21.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/topic4046802.html"
}

Pins

- P7 is PWM on channel 5
- P8 is PWM_n on channel 4
- P9 is PWM on channel 1
- P24 is PWM on channel 3
- P26 is PWM on channel 2
- Flags are set to 1280

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide
