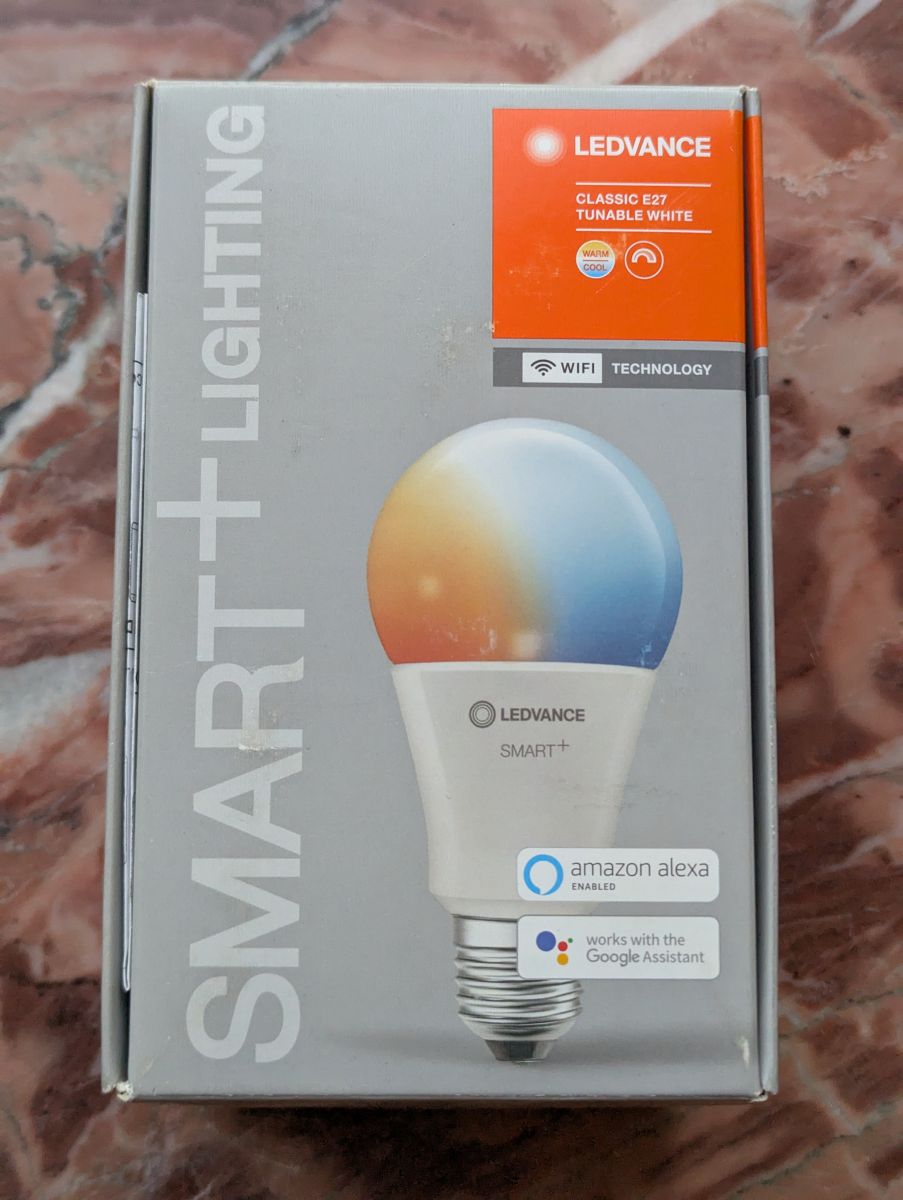

SmartPlus Classic A100 Tunable White Bulb E27 14W 1521lm

Information

Vendor: LEDVANCE

Chip: BK7231T

Board: WB8P

Detailed: 0

Keywords: 2700-6500k, warm, smart+, 230v

Device Template

{
  "vendor": "LEDVANCE",
  "bDetailed": "0",
  "name": "SmartPlus Classic A100 Tunable White Bulb E27 14W 1521lm",
  "model": "AC27511",
  "chip": "BK7231T",
  "board": "WB8P",
  "flags": "1280",
  "keywords": [
    "2700-6500k",
    "warm",
    "smart+",
    "230v"
  ],
  "pins": {
    "7": "PWM;5",
    "8": "PWM_n;4"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/6165346000_1778267835.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/topic4173239.html"
}

Pins

- P7 is PWM on channel 5
- P8 is PWM_n on channel 4
- Flags are set to 1280

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
