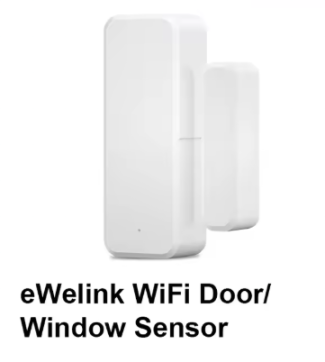

Generic Window / Door Contact Sensor

Information

Vendor: eWeLink

Chip: BK7238

Board: on PCB

Detailed: 0

Keywords: insmod DM, CK-BK7238-W105SE0X-01-DOOR-HB---Ver:1.0.4, magnet

Device Template

{
  "vendor": "eWeLink",
  "bDetailed": "0",
  "name": "Generic Window / Door Contact Sensor",
  "model": "W105SE0X-01-DOOR-HB",
  "chip": "BK7238",
  "board": "on PCB",
  "flags": "0",
  "keywords": [
    "insmod DM",
    "CK-BK7238-W105SE0X-01-DOOR-HB---Ver:1.0.4",
    "magnet"
  ],
  "pins": {
    "7": "Btn;2",
    "20": "BAT_ADC;0",
    "21": "WifiLED_n;0",
    "23": "dInput_n;1",
    "27": "BAT_Relay;0"
  },
  "command": "Battery_Setup 2000 3000 1.54",
  "image": "https://obrazki.elektroda.pl/9972549500_1774337978.png",
  "wiki": ""
}

Pins

- P7 is Btn on channel 2
- P20 is BAT_ADC on channel 0
- P21 is WifiLED_n on channel 0
- P23 is dInput_n on channel 1
- P27 is BAT_Relay on channel 0
- Flags are set to 0
- StartupCommand is set to Battery_Setup 2000 3000 1.54

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
