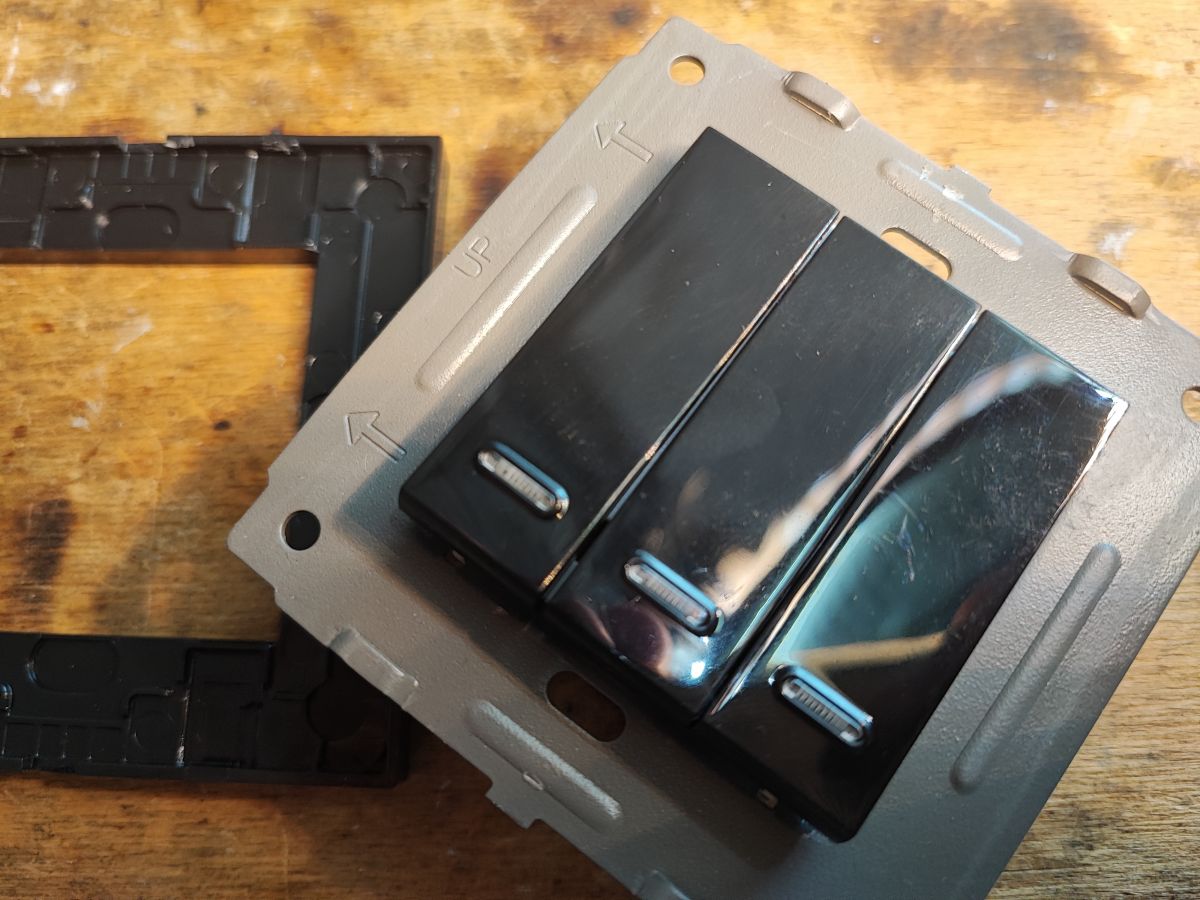

TB11/TB12/TB13 Milfra Wall Switch no touch

Information

Vendor: Tuya

Chip: BK7231N

Board: CBU

Detailed: 1

Keywords: Allegro, microswitch, clicky

Device Template

{
  "vendor": "Tuya",
  "bDetailed": "1",
  "name": "TB11/TB12/TB13 Milfra Wall Switch no touch",
  "model": "TB11/TB12/TB13",
  "chip": "BK7231N",
  "board": "CBU",
  "keywords": [
    "Allegro",
    "microswitch",
    "clicky"
  ],
  "pins": {
    "7": "Btn;1",
    "8": "Btn;2",
    "14": "Rel;1",
    "16": "Rel;2",
    "20": "Rel;3",
    "24": "WifiLED_n;0",
    "28": "Btn;3"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/7352655000_1734272684.jpg",
  "wiki": "https://www.elektroda.pl/rtvforum/topic4098965.html"
}

Pins

- P7 is Btn on channel 1
- P8 is Btn on channel 2
- P14 is Rel on channel 1
- P16 is Rel on channel 2
- P20 is Rel on channel 3
- P24 is WifiLED_n on channel 0
- P28 is Btn on channel 3

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide
