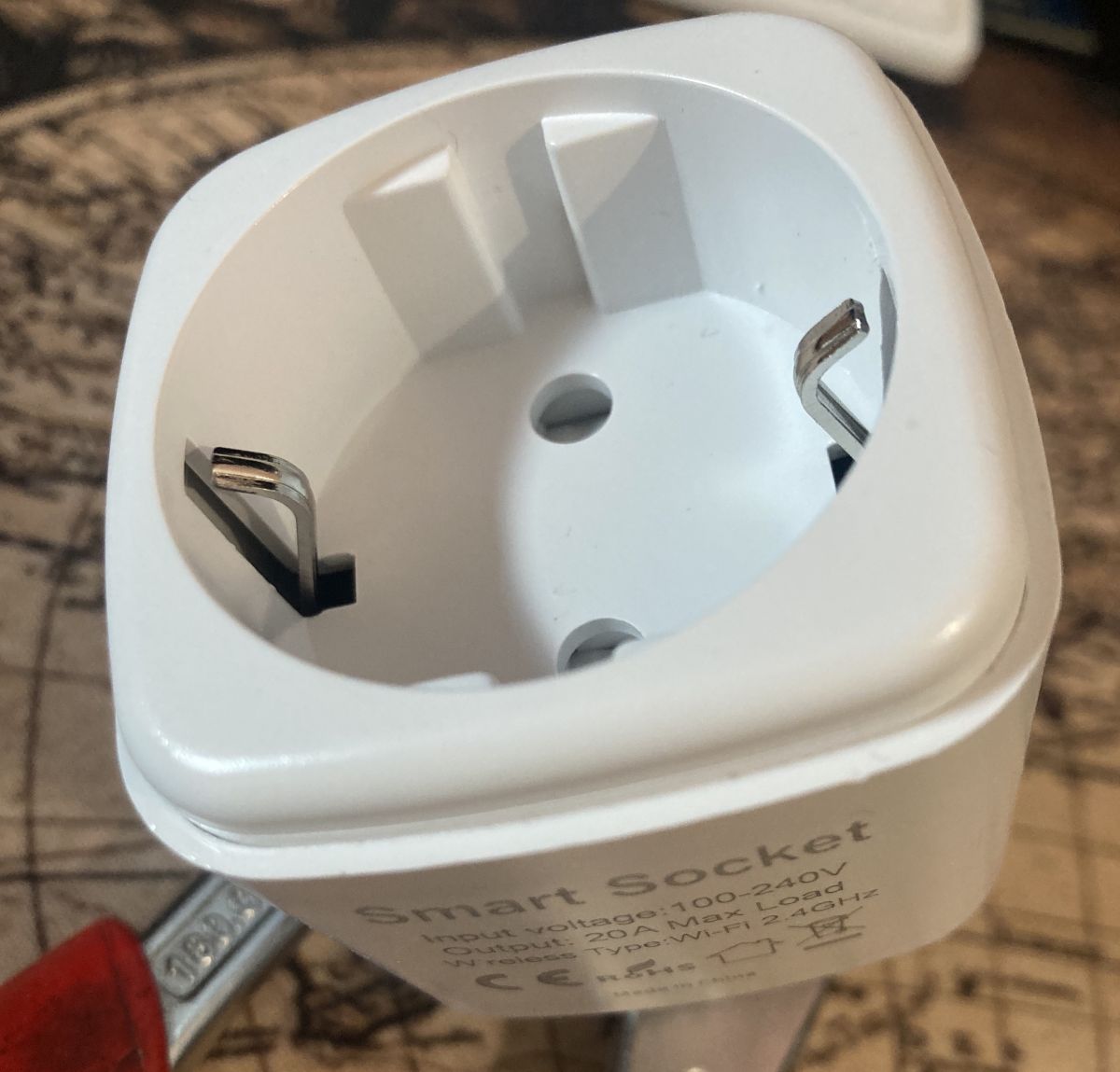

Smart Socket 20A

Information

Vendor: Tuya

Chip: BL602

Board: SM-028_V1.3

Detailed: 0

Keywords:

Device Template

{
  "vendor": "Tuya",
  "bDetailed": "0",
  "name": "Smart Socket 20A",
  "model": "",
  "chip": "BL602",
  "board": "SM-028_V1.3",
  "flags": "69731332",
  "keywords": [],
  "pins": {
    "2": "Rel;1",
    "3": "BL0937CF1;0",
    "14": "BL0937CF;0",
    "17": "Btn;1",
    "20": "LED_n;1",
    "21": "BL0937SEL;0"
  },
  "command": "backlog startDriver BL0937; startDriver NTP; startDriver SSDP",
  "image": "https://obrazki.elektroda.pl/9568515100_1707749274.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/topic4020634.html"
}

Pins

- P2 is Rel on channel 1
- P3 is BL0937CF1 on channel 0
- P14 is BL0937CF on channel 0
- P17 is Btn on channel 1
- P20 is LED_n on channel 1
- P21 is BL0937SEL on channel 0
- Flags are set to 69731332
- StartupCommand is set to backlog startDriver BL0937; startDriver NTP; startDriver SSDP

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide
