MOES Smart Swich Module WIFI 4gang

Information

Vendor: Tuya

Chip: BK7231N

Board: CBU

Detailed: 0

Keywords: switch, 4 gang

Device Template

{
  "vendor": "Tuya",
  "bDetailed": "0",
  "name": "MOES Smart Swich Module WIFI 4gang",
  "model": "MOES Smart Swich Module WIFI 4gang",
  "chip": "BK7231N",
  "board": "CBU",
  "keywords": [
    "switch",
    "4 gang"
  ],
  "pins": {
    "7": "Btn;2",
    "9": "Btn;3",
    "14": "Btn;1",
    "15": "Btn;4",
    "16": "Rel;4",
    "17": "Rel;2",
    "24": "Rel;1",
    "26": "Rel;3"
  },

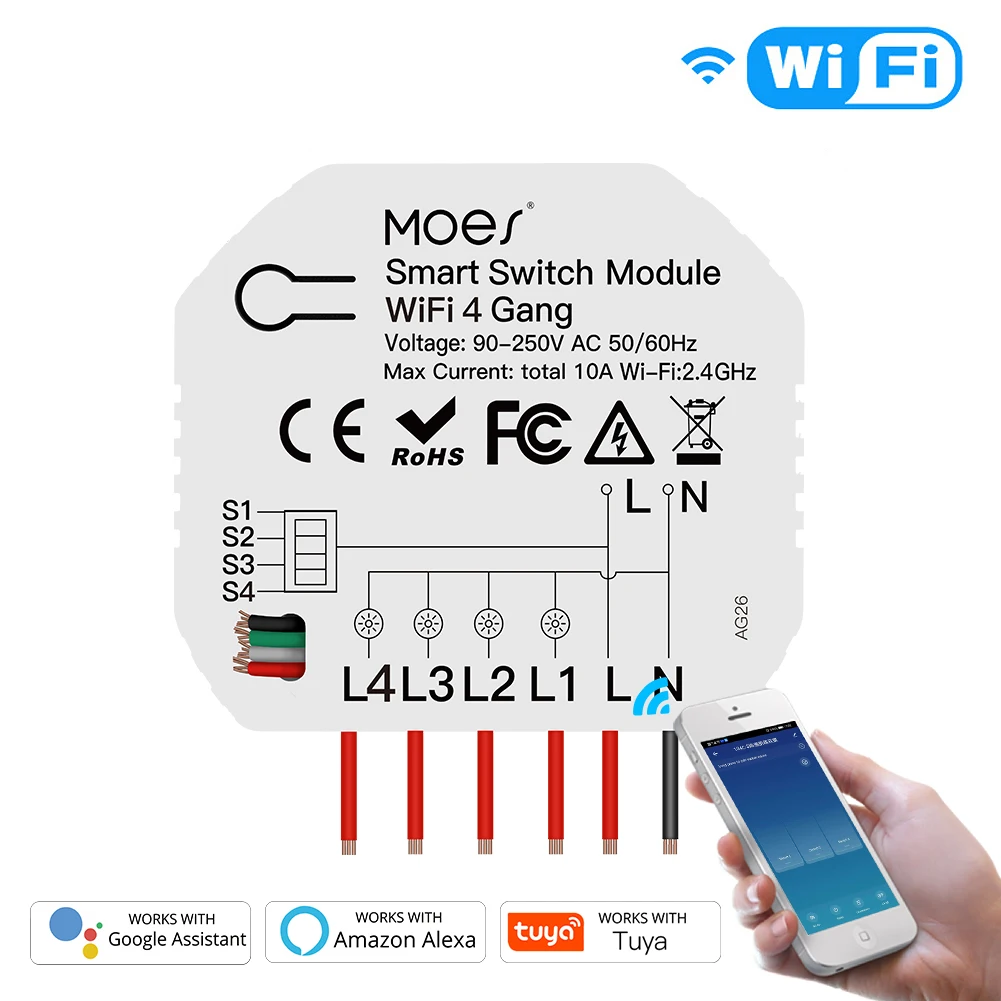

  "image": "https://ae01.alicdn.com/kf/H64b1ce4cac764eee884f3a68023d7d153.jpg",
  "wiki": "",
  "product": "https://www.aliexpress.com/item/1005003425831720.html"
}

Pins

- P7 is Btn on channel 2
- P9 is Btn on channel 3
- P14 is Btn on channel 1
- P15 is Btn on channel 4
- P16 is Rel on channel 4
- P17 is Rel on channel 2
- P24 is Rel on channel 1
- P26 is Rel on channel 3

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

You can also visit shop site.

Return to devices list.

Devices with similar GPIO configuration

Moes Smart Switch Module Wi-Fi 4 Gang - 37.5% match
Milfra TB-23 Wifi Smart Switch - 25.0% match
Tuya Smart Life Garage Door Motor Receiver 4CH Switch Controller WiFi Switch - 20.0% match
Generic Wi-Fi/Zigbee Gateway (TYZS3) - 12.5% match
4-Channel R3 Pro Smart Switch PCB 85-265V - 12.5% match
