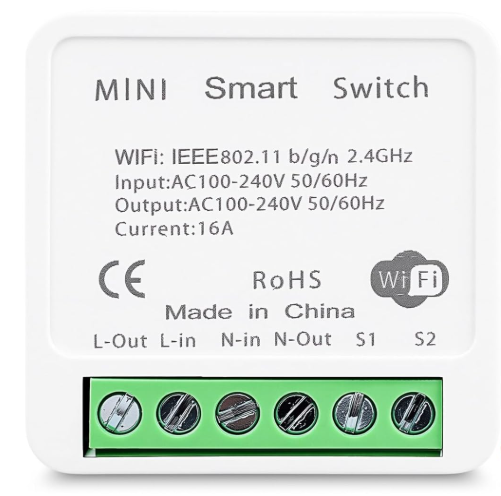

Generic 16A Mini Switch

Information

Vendor: Tuya

Chip: BK7238

Board: on PCB

Detailed: 0

Keywords: T1-CHL, AU5101XA, e1n6c5uw, keyfxuj3d5wg53wx, cwpezmgx7zbylz3a

Device Template

{
  "vendor": "Tuya",
  "bDetailed": "0",
  "name": "Generic 16A Mini Switch",
  "model": "",
  "chip": "BK7238",
  "board": "on PCB",
  "keywords": [
    "T1-CHL",
    "AU5101XA",
    "e1n6c5uw",
    "keyfxuj3d5wg53wx",
    "cwpezmgx7zbylz3a"
  ],
  "pins": {
    "6": "TglChanOnTgl;1",
    "15": "Btn_Tgl_All;1",
    "17": "LED;1",
    "26": "Rel;1"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/3995604400_1769061470.png",
  "wiki": "https://www.elektroda.com/rtvforum/topic4161841.html"
}

Pins

- P6 is TglChanOnTgl on channel 1
- P15 is Btn_Tgl_All on channel 1
- P17 is LED on channel 1
- P26 is Rel on channel 1
