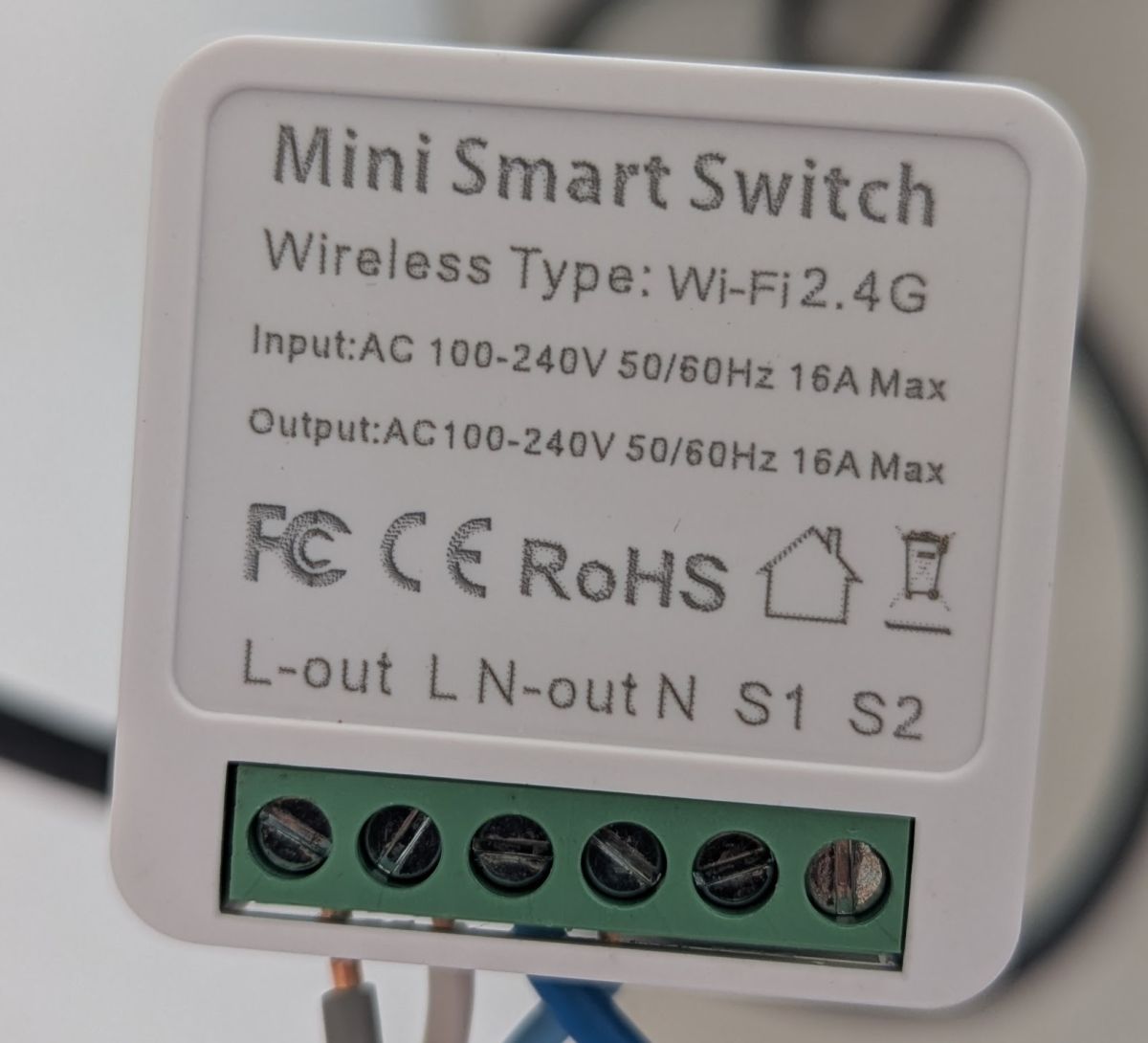

Generic 16A Mini Smart Switch with Power Monitoring

Information

Vendor: Tuya

Chip: BK7238

Board: T1-2S-NL

Detailed: 0

Keywords: breaker, diy

Device Template

{
  "vendor": "Tuya",
  "bDetailed": "0",
  "name": "Generic 16A Mini Smart Switch with Power Monitoring",
  "model": "",
  "chip": "BK7238",
  "board": "T1-2S-NL",
  "flags": "1024",
  "keywords": [
    "breaker",
    "diy"
  ],
  "pins": {
    "1": "WifiLED;0",
    "8": "Rel;1",
    "9": "Btn_Tgl_All;0",
    "24": "TglChanOnTgl;1"
  },
  "command": "backlog powersave 1; startdriver bl0942",
  "image": "https://obrazki.elektroda.pl/9702950000_1758450245.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/viewtopic.php?p=21696124#21696124"
}

Pins

- P1 is WifiLED on channel 0
- P8 is Rel on channel 1
- P9 is Btn_Tgl_All on channel 0
- P24 is TglChanOnTgl on channel 1
- Flags are set to 1024
- StartupCommand is set to backlog powersave 1; startdriver bl0942

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
