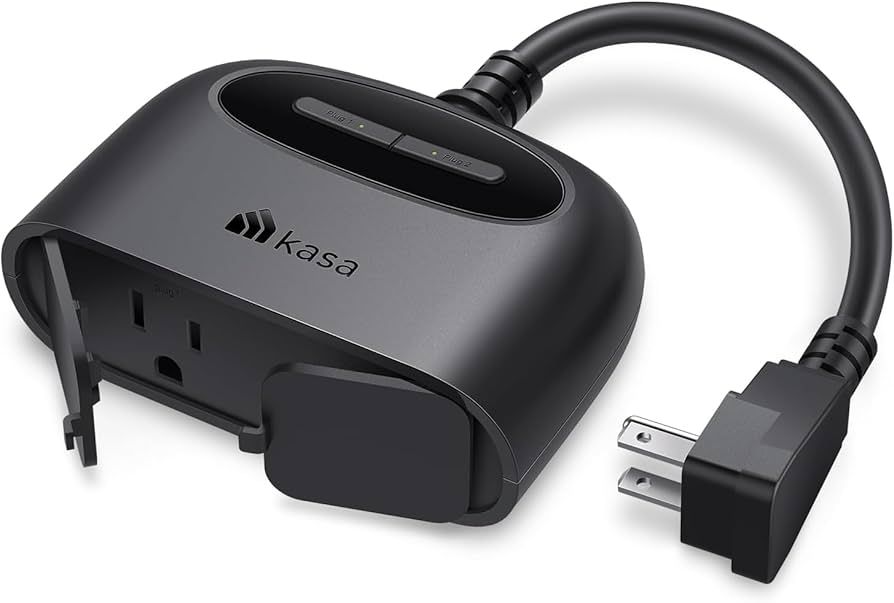

Kasa Dual WiFi Exterior Smart Plug (US)

Information

Vendor: TP-Link

Chip: RTL87X0C

Board: N/A

Detailed: 0

Keywords: double, outdoors, waterproof, outlet

Device Template

{
  "vendor": "TP-Link",
  "bDetailed": "0",
  "name": "Kasa Dual WiFi Exterior Smart Plug (US)",
  "model": "KP400",
  "chip": "RTL87X0C",
  "board": "",
  "flags": "1024",
  "keywords": [
    "double",
    "outdoors",
    "waterproof",
    "outlet"
  ],
  "pins": {
    "2": "LED_n;2",
    "3": "WifiLED;0",
    "7": "Rel;2",
    "8": "Rel;1",
    "9": "WifiLED;0",
    "10": "LED_n;1",
    "11": "Btn;2",
    "12": "Btn;1"
  },
  "command": "setButtonTimes 50 1 5",
  "image": "https://obrazki.elektroda.pl/2201733400_1757640007.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/topic4144475.html"
}

Pins

- P2 is LED_n on channel 2
- P3 is WifiLED on channel 0
- P7 is Rel on channel 2
- P8 is Rel on channel 1
- P9 is WifiLED on channel 0
- P10 is LED_n on channel 1
- P11 is Btn on channel 2
- P12 is Btn on channel 1
- Flags are set to 1024
- StartupCommand is set to setButtonTimes 50 1 5

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
