1P+N WIFI Smart Metering Monitoring Circuit Breaker/MCB + Power Metering

Information

Vendor: TOMZN

Chip: BK7238

Board: T1-U-HL

Detailed: 0

Keywords: switch, kwh, relay

Device Template

{
  "vendor": "TOMZN",
  "bDetailed": "0",

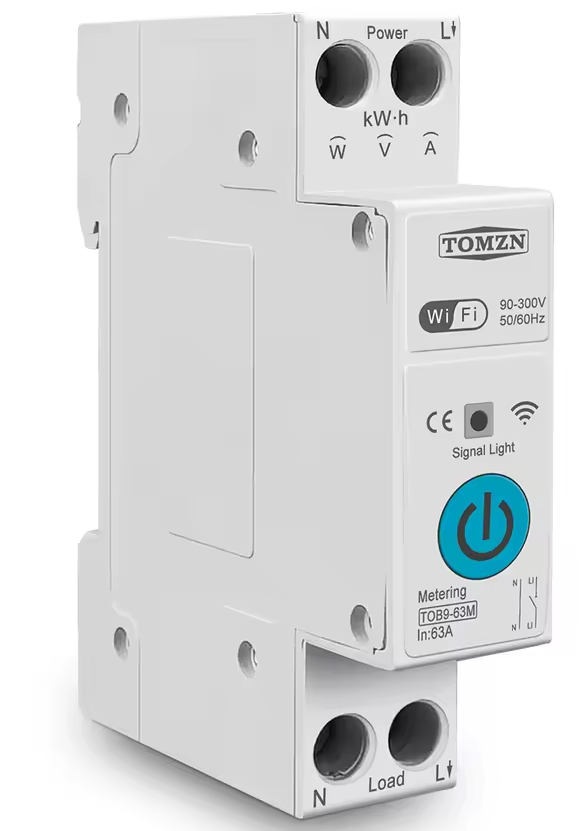

  "name": "1P+N WIFI Smart Metering Monitoring Circuit Breaker/MCB + Power Metering",
  "model": "TOB9-63M",
  "chip": "BK7238",
  "board": "T1-U-HL",
  "flags": "1024",
  "keywords": [
    "switch",
    "kwh",
    "relay"
  ],
  "pins": {
    "6": "BridgeREV;1",
    "8": "BridgeFWD;1",
    "15": "WifiLED_n;0",
    "17": "Btn;1",
    "21": "LED;1"
  },
  "command": "startdriver bl0942",
  "image": "https://obrazki.elektroda.pl/9758411200_1765994014.png",
  "wiki": "https://www.elektroda.com/rtvforum/topic4157516.html"
}

Pins

- P6 is BridgeREV on channel 1
- P8 is BridgeFWD on channel 1
- P15 is WifiLED_n on channel 0
- P17 is Btn on channel 1
- P21 is LED on channel 1
- Flags are set to 1024
- StartupCommand is set to startdriver bl0942

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
