Mini Matter 16A AC100-240V Smart Switch

Information

Vendor: SparkleIoT

Chip: BK7231M

Board: XH-CB2S

Detailed: 0

Keywords: MINI通断器_V1.3, breaker, 4mb

Device Template

{
  "vendor": "SparkleIoT",
  "bDetailed": "0",

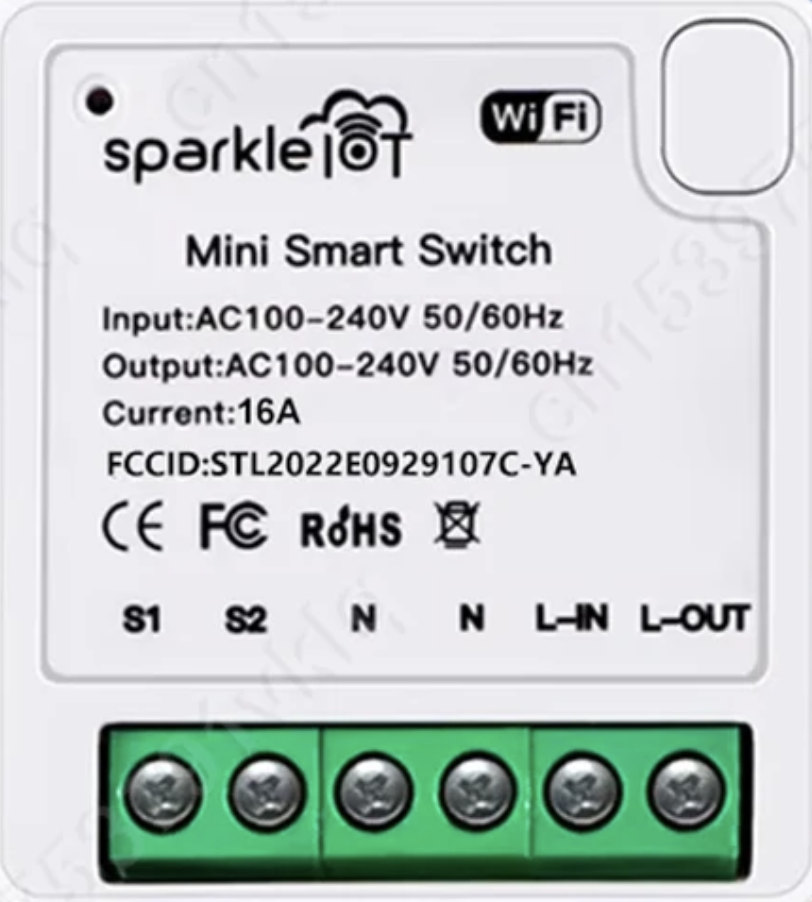

  "name": "Mini Matter 16A AC100-240V Smart Switch",
  "model": "MINI_SWITCH_V1.3",
  "chip": "BK7231M",
  "board": "XH-CB2S",
  "flags": "1024",
  "keywords": [
    "MINI通断器_V1.3",
    "breaker",
    "4mb"
  ],
  "pins": {
    "6": "LED_n;1",
    "7": "Btn_Tgl_All;0",
    "24": "Rel;1"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/1790643400_1762454021.png",
  "wiki": "https://www.elektroda.com/rtvforum/topic4086986.html"
}

Pins

- P6 is LED_n on channel 1
- P7 is Btn_Tgl_All on channel 0
- P24 is Rel on channel 1
- Flags are set to 1024

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
