WiFi DIY Relay

Information

Vendor: QIACHIP

Chip: BL602

Board: SM-028_V1.3

Detailed: 0

Keywords: switch, relay, KR05

Device Template

{
  "vendor": "QIACHIP",
  "bDetailed": "0",
  "name": "WiFi DIY Relay",
  "model": "KR05-1CHKG-W",
  "chip": "BL602",
  "board": "SM-028_V1.3",
  "pins": {
    "4": "Btn;1",
    "20": "Rel;1",
    "22": "WifiLED_n;1"
  },
  "keywords": [
    "switch",
    "relay",
    "KR05"
  ],

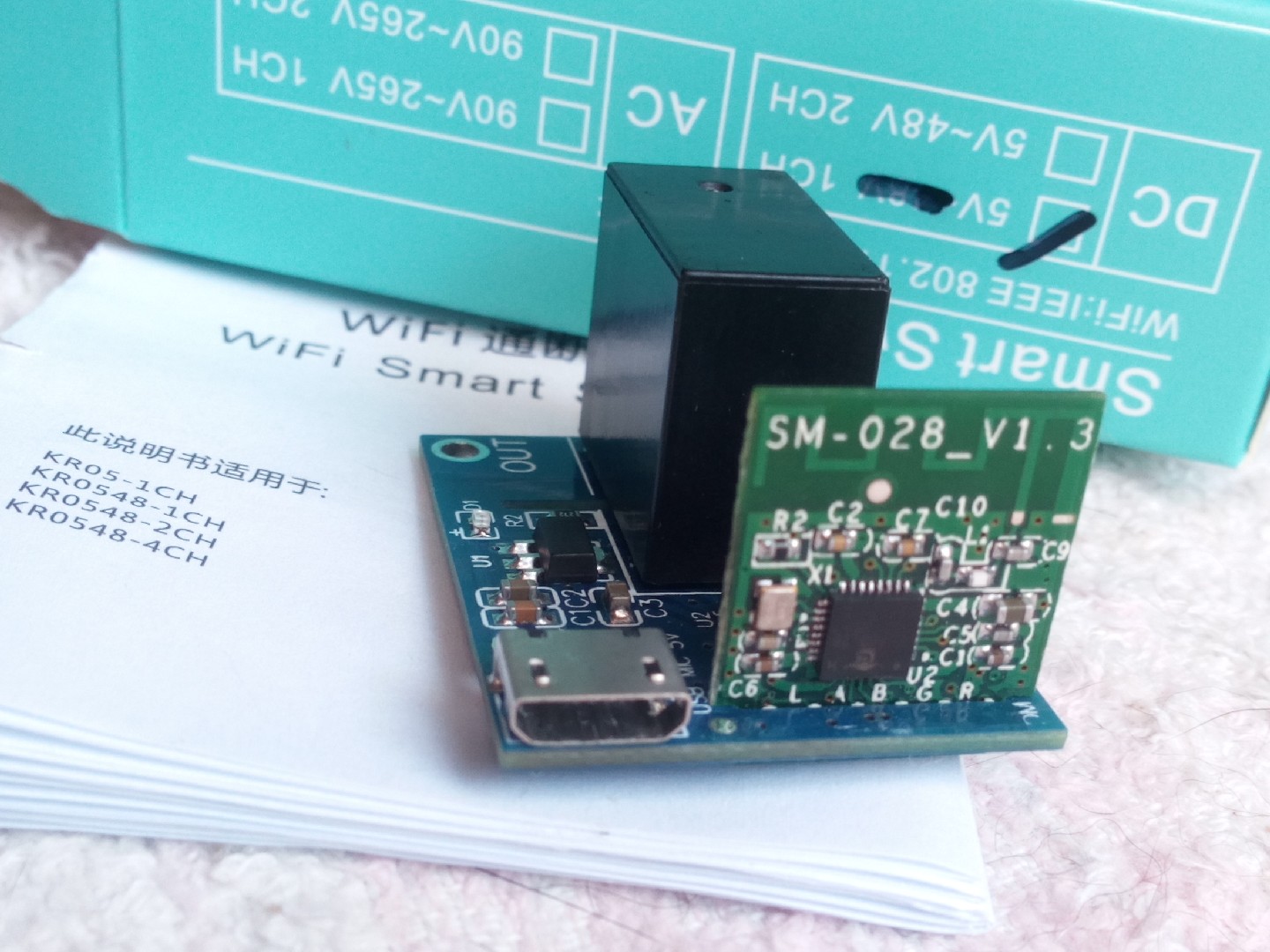

  "image": "https://user-images.githubusercontent.com/14217781/209668900-bb520a07-8e79-45ce-a03a-ca0936ad0034.jpg",
  "wiki": "",
  "product": "https://aliexpress.com/item/1005004996247436.html"
}

Pins

- P4 is Btn on channel 1
- P20 is Rel on channel 1
- P22 is WifiLED_n on channel 1

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

You can also visit shop site.

Return to devices list.
