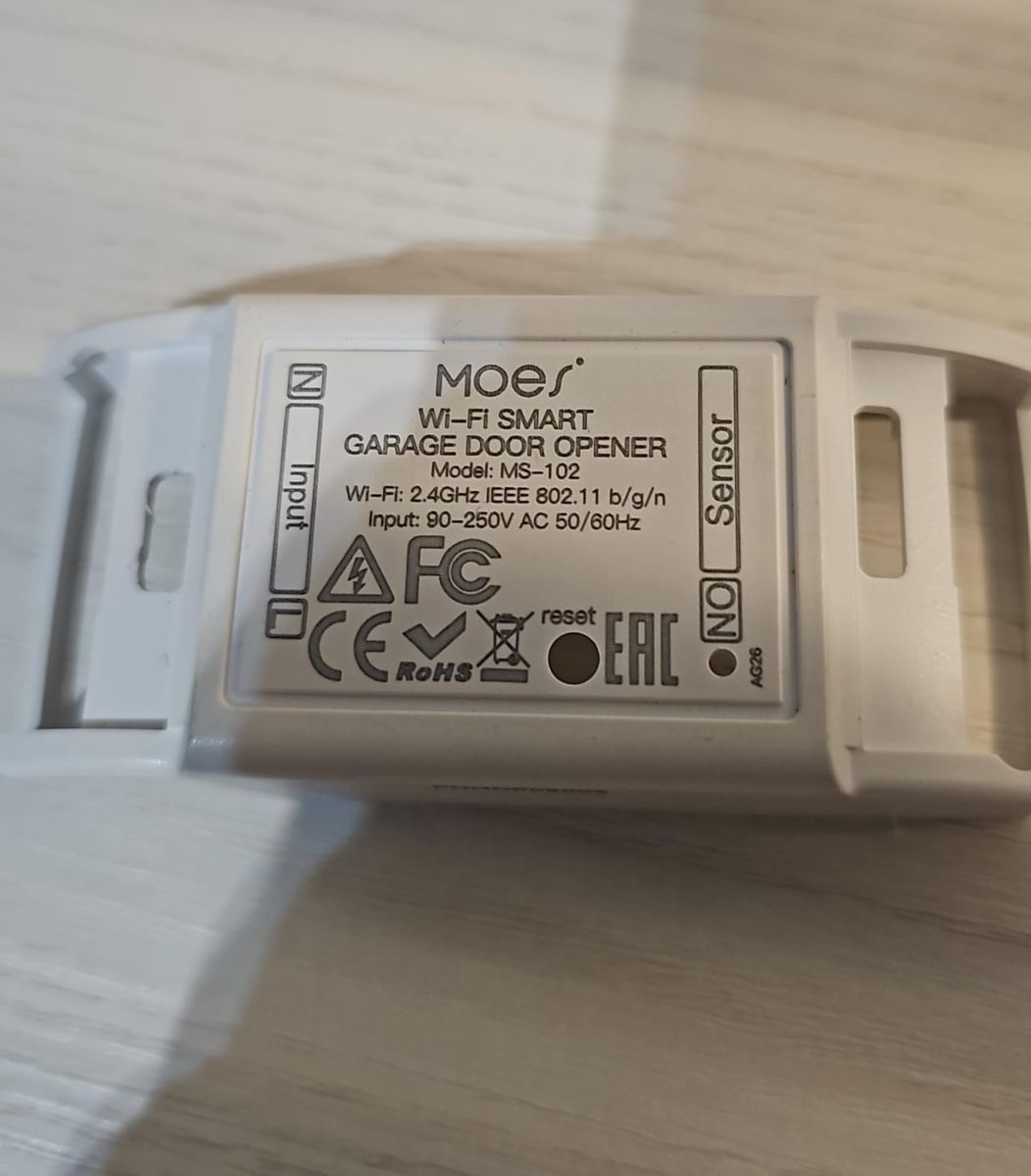

Tuya Wi-Fi Smart Garage Door Opener

Information

Vendor: MOES

Chip: BK7231T

Board: WB2S

Detailed: 0

Keywords: axkmay3av5h3zh9y, NH-HG-102 车库门控制器蓝牙双模升级版, 000002ilv4, 90-250v, keymxkctp9ukgcvg

Device Template

{
  "vendor": "MOES",
  "bDetailed": "0",
  "name": "Tuya Wi-Fi Smart Garage Door Opener",
  "model": "MS-102",
  "chip": "BK7231T",
  "board": "WB2S",
  "flags": "1024",
  "keywords": [
    "axkmay3av5h3zh9y",
    "NH-HG-102 车库门控制器 蓝牙双模升级版",
    "000002ilv4",
    "90-250v",
    "keymxkctp9ukgcvg"
  ],
  "pins": {
    "6": "Btn;1",
    "7": "WifiLED_n;0",
    "24": "Rel;1",
    "26": "dInput;0"
  },
  "command": "powersave 1",
  "image": "https://obrazki.elektroda.pl/9040843000_1765928778.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/topic4157492.html"
}

Pins

- P6 is Btn on channel 1
- P7 is WifiLED_n on channel 0
- P24 is Rel on channel 1
- P26 is dInput on channel 0
- Flags are set to 1024
- StartupCommand is set to powersave 1

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
