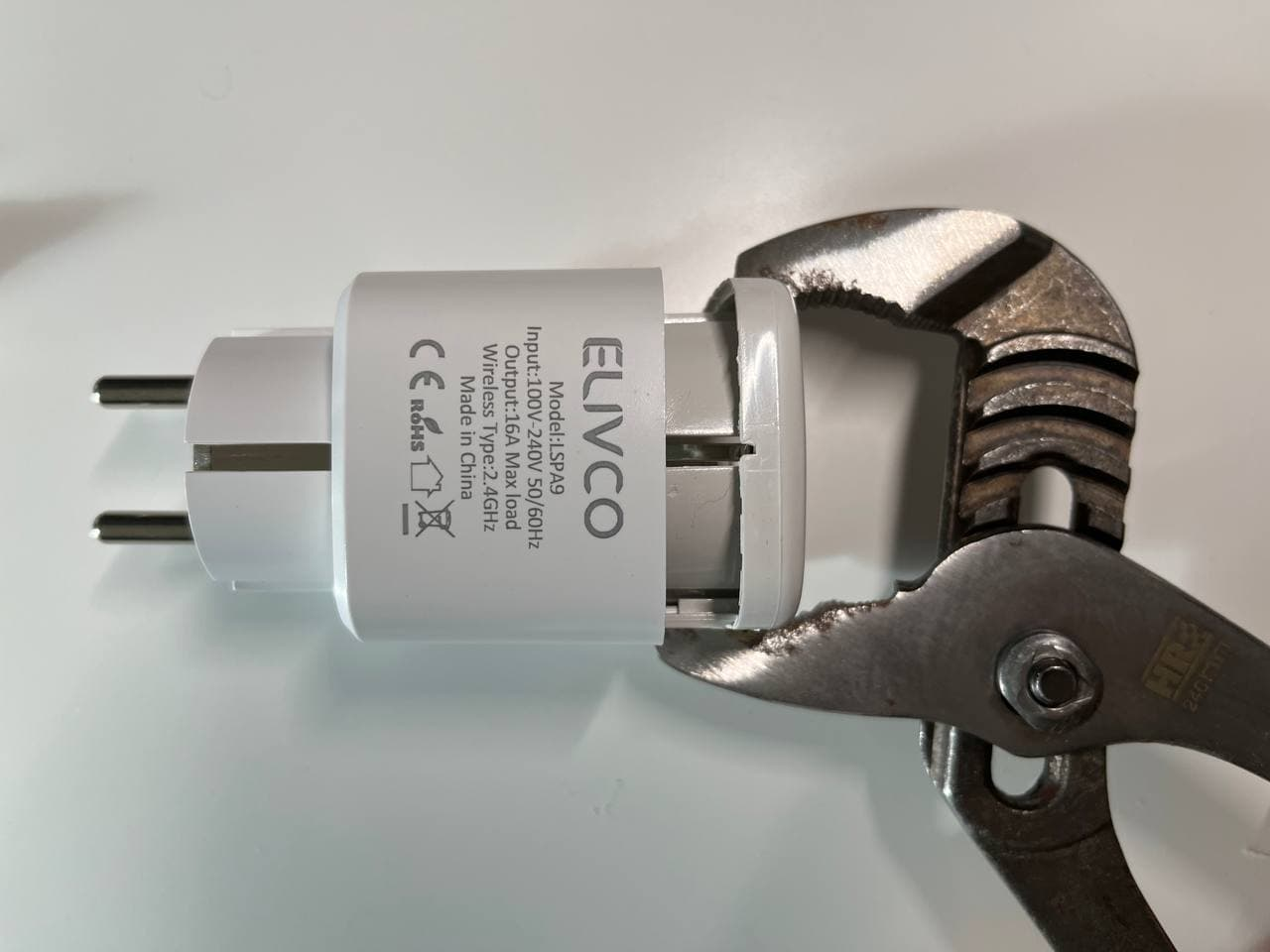

LSPA9 Power metering plug BL0937 version

Information

Vendor: ELIVCO

Chip: BK7231N

Board: CB2S

Detailed: 1

Keywords:

Device Template

{
  "vendor": "ELIVCO",
  "bDetailed": "1",
  "name": "LSPA9 Power metering plug BL0937 version",
  "model": "LSPA9",
  "chip": "BK7231N",
  "board": "CB2S",
  "pins": {
    "6": "BL0937CF1;1",
    "7": "BL0937CF;1",
    "10": "Btn;1",
    "24": "BL0937SEL;1",
    "26": "Rel;1"
  },
  "image": "https://obrazki.elektroda.pl/7144402400_1667457959.png",
  "wiki": "https://www.elektroda.com/rtvforum/topic3887748.html",
  "command": "backlog startDriver BL0937; PREF 1.2; VREF 0.124868; IREF 0.010548"
}

Pins

- P6 is BL0937CF1 on channel 1
- P7 is BL0937CF on channel 1
- P10 is Btn on channel 1
- P24 is BL0937SEL on channel 1
- P26 is Rel on channel 1
- StartupCommand is set to backlog startDriver BL0937; PREF 1.2; VREF 0.124868; IREF 0.010548

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
