4 gang push button switch

Information

Vendor: Casenl

Chip: BK7231N

Board: CBU

Detailed: 0

Keywords: switch, 4 gang

Device Template

{
  "vendor": "Casenl",
  "bDetailed": "0",
  "name": "4 gang push button switch",
  "model": "Tuya WIFI 4gang Switch",
  "chip": "BK7231N",
  "board": "CBU",
  "keywords": [
    "switch",
    "4 gang"
  ],
  "pins": {
    "6": "Rel;3",
    "7": "Rel;2",
    "9": "Rel;1",
    "14": "Btn;1",
    "16": "Btn;2",
    "20": "Btn;3",
    "22": "Btn;4",
    "24": "WifiLED;1",
    "26": "Rel;4"
  },

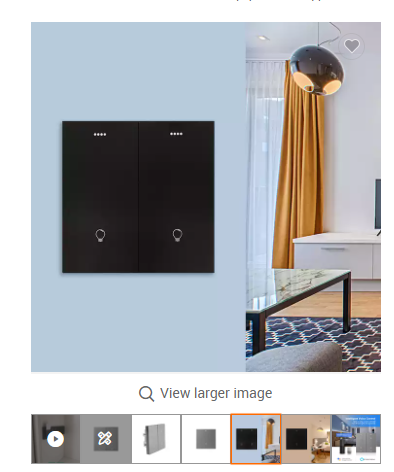

  "image": "https://obrazki.elektroda.pl/6472286600_1665558182.png",
  "wiki": "",
  "product": "https://www.alibaba.com/product-detail/Factory-OEM-zigbee-smart-switch-eu_1600258056467.html"
}

Pins

- P6 is Rel on channel 3
- P7 is Rel on channel 2
- P9 is Rel on channel 1
- P14 is Btn on channel 1
- P16 is Btn on channel 2
- P20 is Btn on channel 3
- P22 is Btn on channel 4
- P24 is WifiLED on channel 1
- P26 is Rel on channel 4

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

You can also visit shop site.

Return to devices list.
