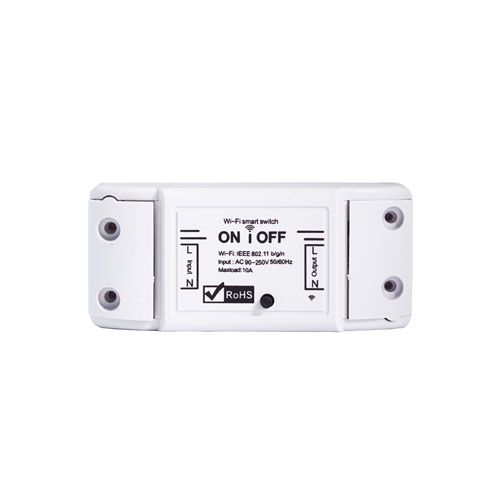

Bardi On Off Breaker

Information

Vendor: Bardi

Chip: BK7231T

Board: WB2S

Detailed: 0

Keywords: indonesia, single smart switch, single relay

Device Template

{
  "vendor": "Bardi",
  "bDetailed": "0",
  "name": "Bardi On Off Breaker",
  "model": "JKY101-F-SR-V31",
  "chip": "BK7231T",
  "board": "WB2S",
  "flags": "1024",
  "keywords": [
    "indonesia",
    "single smart switch",
    "single relay"
  ],
  "pins": {
    "6": "Btn;0",
    "7": "LED_n;0",
    "24": "Rel;0"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/4378967800_1708226561.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/topic4036753.html"
}

Pins

- P6 is Btn on channel 0
- P7 is LED_n on channel 0
- P24 is Rel on channel 0
- Flags are set to 1024

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

Return to devices list.
