Smart Plug (Aubess LSPA9 clone)

Information

Vendor: Aubess

Chip: BK7231N

Board: CB2S

Detailed: 0

Keywords: switch, plug, power monitoring, BL0937

Device Template

{
  "vendor": "Aubess",
  "bDetailed": "0",
  "name": "Smart Plug (Aubess LSPA9 clone)",
  "model": "Tuya WIFI Smart Socket",
  "chip": "BK7231N",
  "board": "CB2S",
  "keywords": [
    "switch",
    "plug",
    "power monitoring",
    "BL0937"
  ],
  "pins": {
    "6": "BL0937CF1;0",
    "7": "BL0937CF;0",
    "8": "LED_n;1",
    "23": "Btn;1",
    "24": "BL0937SEL;0",
    "26": "Rel;1"
  },

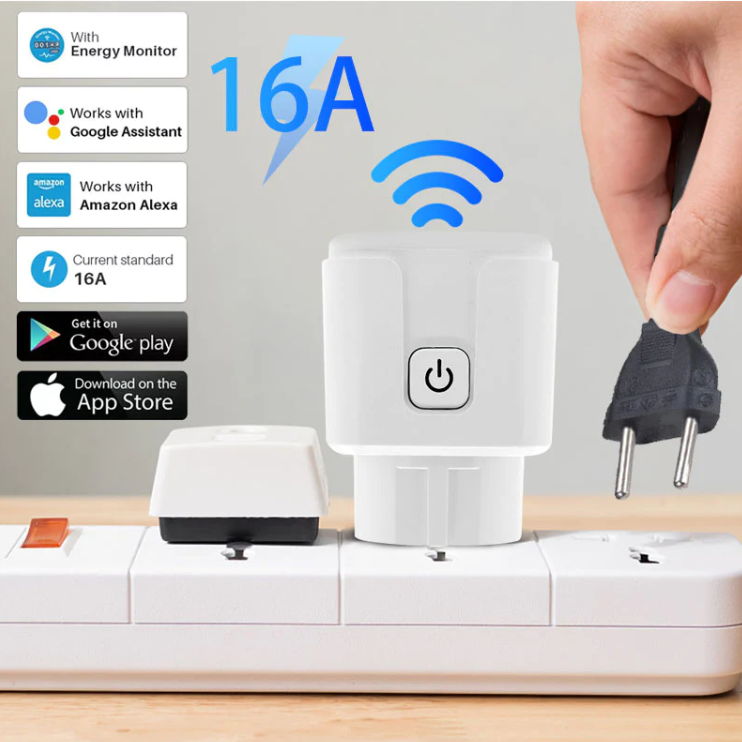

  "image": "https://obrazki.elektroda.pl/1064078600_1665558139.png",
  "wiki": "https://www.elektroda.com/rtvforum/viewtopic.php?p=20364254#20364254",
  "product": "https://www.aubess.net/products/aubess-tuya-wifi-smart-socket-16a-work-with-alexa-google-home-yandex"
}

Pins

- P6 is BL0937CF1 on channel 0
- P7 is BL0937CF on channel 0
- P8 is LED_n on channel 1
- P23 is Btn on channel 1
- P24 is BL0937SEL on channel 0
- P26 is Rel on channel 1

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

You can also visit shop site.

Return to devices list.
