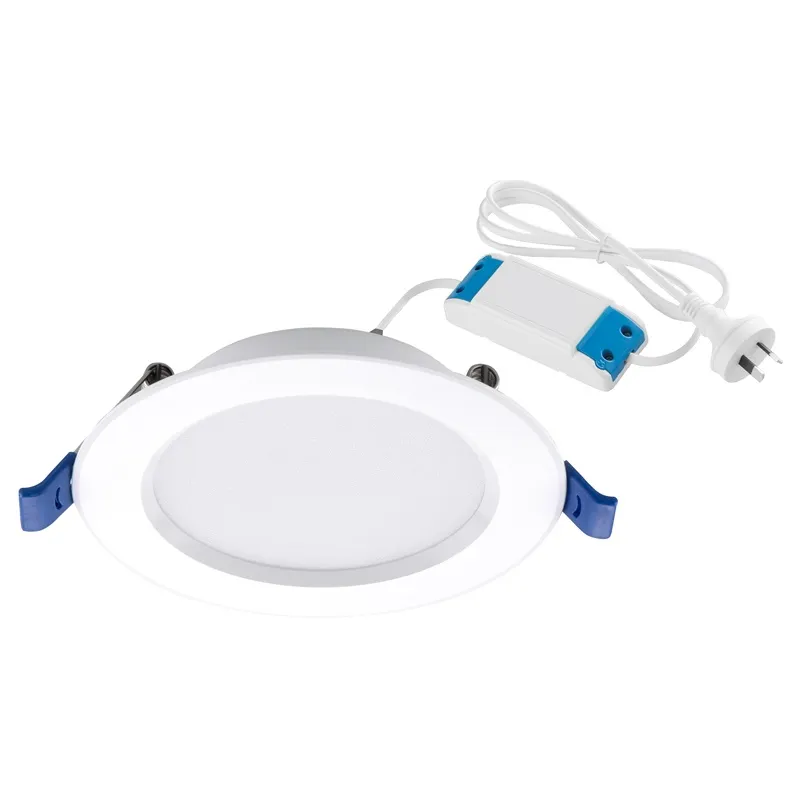

RGB+CCT LED Downlight

Information

Vendor: Arlec

Chip: BK7231T

Board: WB3L

Detailed: 0

Keywords:

Device Template

{
  "vendor": "Arlec",
  "bDetailed": "0",
  "name": "RGB+CCT LED Downlight",
  "model": "ALD092RHA",
  "chip": "BK7231T",
  "board": "WB3L",
  "pins": {
    "6": "PWM;4",
    "7": "PWM;2",
    "8": "PWM;1",
    "9": "PWM;3",
    "24": "PWM;5"
  },
  "image": "https://obrazki.elektroda.pl/2040976900_1665557370.png",
  "wiki": "",
  "product": "https://www.bunnings.com.au/arlec-grid-connect-smart-9w-rgb-cct-led-downlight_p0168695"
}

Pins

- P6 is PWM on channel 4
- P7 is PWM on channel 2
- P8 is PWM on channel 1
- P9 is PWM on channel 3
- P24 is PWM on channel 5

Futher reading

Read detailed flashing guide and get help in device topic: English guide, see also Polish guide

You can also visit shop site.

Return to devices list.
